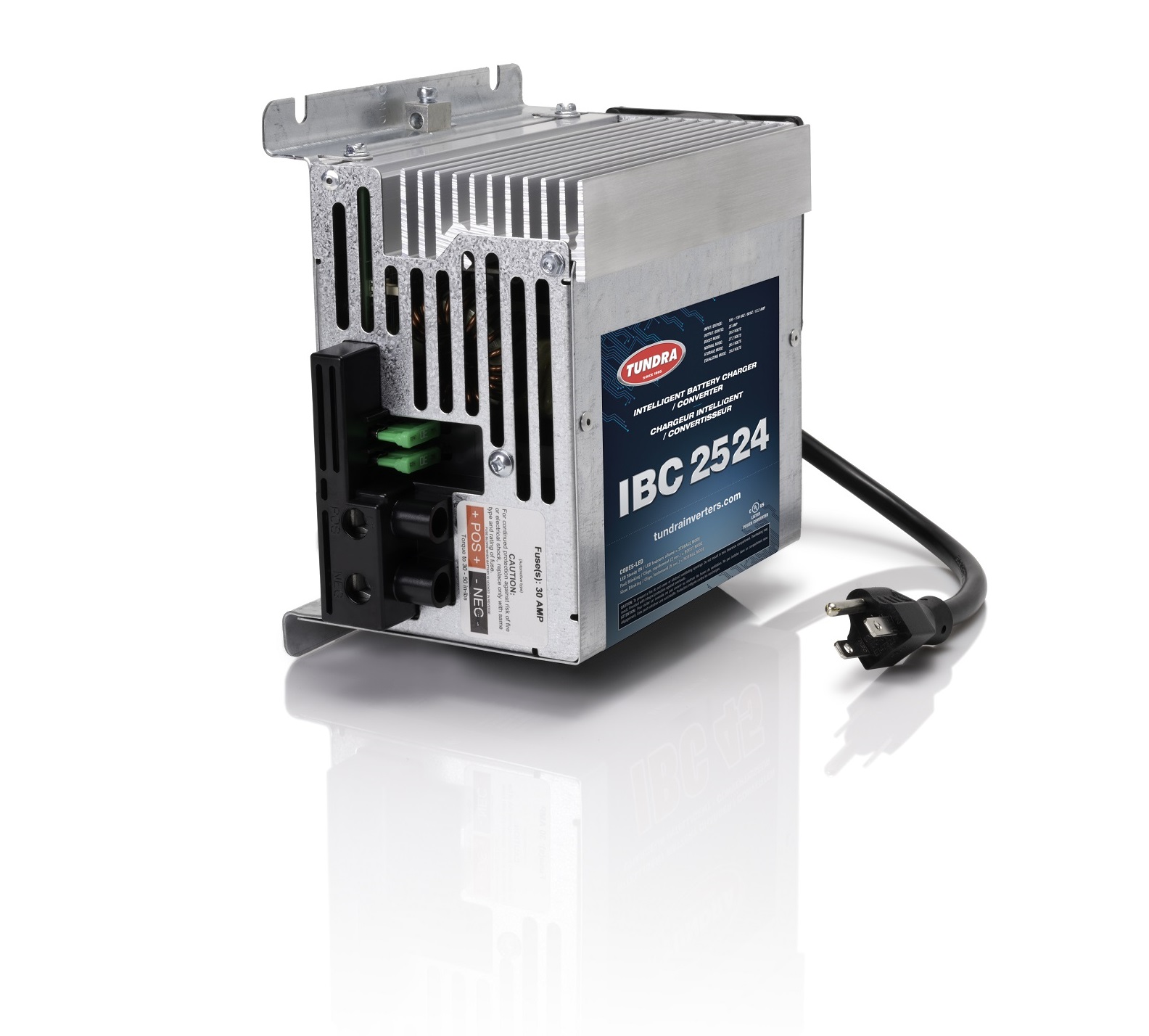

120 V TO 24 V BATTERY CHARGERS – IBC SERIES

FOR MOTOR COACHES & BUSES


The IBC Series is designed to reduce your operating costs & garantee engine start of your vehicles. Whether it’s providing additional recharging capacity when the vehicle is stopped, recharging an auxiliary battery bank, or keeping a vehicle’s batteries fully charged in cold weather, our multi-mode battery chargers stand out with their performance and exceptional durability.


KEY BENEFITS & FEATURES
– Fully automatic
– Safe for batteries
– Sturdy design
– Ultra-reliable
– 4 charging modes
– For permanent installation

INSTRUCTION MANUALS & DETAILED SPECIFICATIONS

SPECIFICATIONS

Model IBC2524 IBC4024
Part Number TUN424001 TUN424002
Continuous Charging Power 25A 40A
Input Voltage 120 VAC 120 VAC
Output Voltage 24 VDC 24 VDC
AC Input Cord NEMA 5/15 P  NEMA 5/20 P*
(* 120 VAC/20 A input required)
Charging Modes 4 modes
(normal, boost, float & equalize)
4 modes
(normal, boost, float & equalize)
AC Input Consumption 12.2 A 14.9 A
Dimensions 8.3 x 7.3 x 4.5 in. 8.0 x 9.0 x 3.6 in.
Weight 4.5 lb / 2.0 kg 5.9 lb / 2.7 kg
Price (MSRP) $534 $706
